I-Beam Curtain Track

40mm Single Track Wall Bracket | Snap-In I-Beam Curtain Rail Mount | SZ-XGL01W SINGLE WALL BRACKET

SKU: SZ-XGL01W SINGLE WALL BRACKET

Be the first to leave a review.

15.28 .ރ

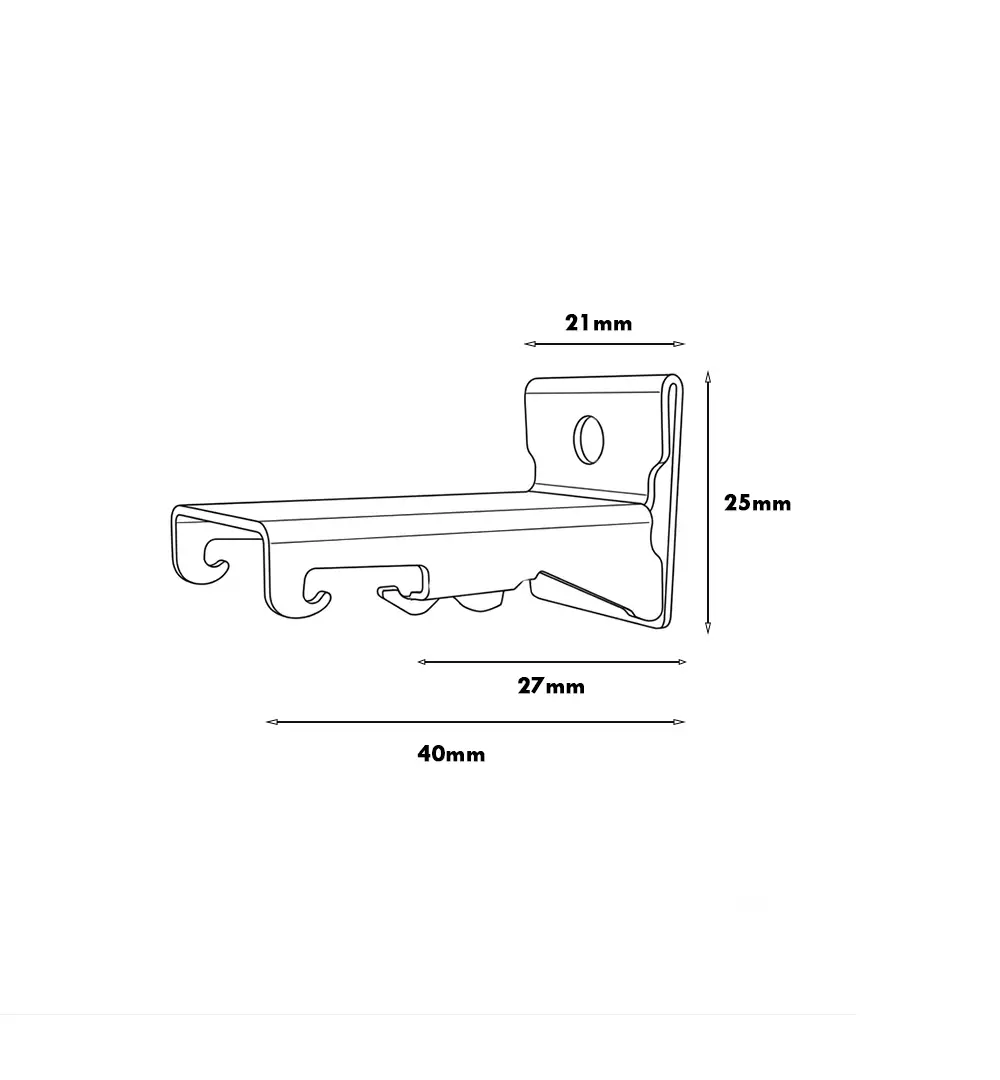

      • Dimensions:

        • Total Extension Depth: 40 mm

        • Wall Plate Height: 25 mm

        • Wall Plate Width: 21 mm

        • Wall-to-Track Clip Clearance: 27 mm

      • Mounting Type: Wall / side-frame mount via pre-drilled screw hole.

      • Compatibility: Tailored to fit standard 10mm top-width I-beam curtain rails.

      • Design Benefits: Ideal 27mm projection creates natural clearance from wall surfaces and trim, preventing fabric drag while ensuring strong structural support.

Tags: Categories: ,

Products Details

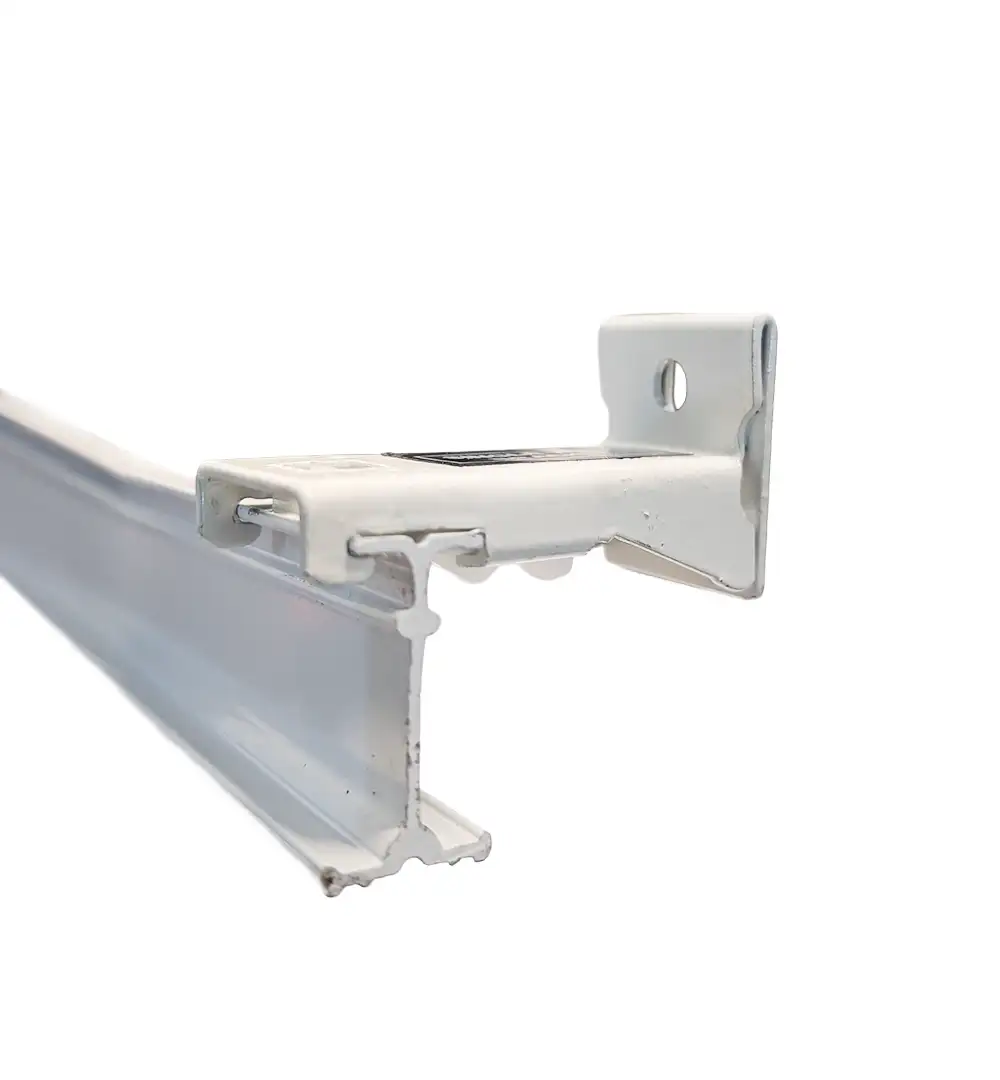

Heavy-duty 40mm single wall bracket designed to mount an I-beam curtain track directly to walls or window frames. Features a 25mm vertical wall plate and holds the track rail at a 27mm wall-to-center offset with a quick snap-in clip design.
